Product Description
Features of SR-ML2440
A built-in maximum power point tracking algorithm can significantly
improve the energy utilization efficiency of photovoltaic systems,
and raise the charging efficiency by 15% to 20% compared with the
conventional PWM method.
The product boasts an optimum MPPT tracking efficiency of up to
99.9%.
Advanced digital power supply technologies raise the circuit's
energy conversion efficiency to as high as 98%.
Charging program options are available for different types of
batteries including gel batteries, sealed batteries, open
batteries, lithium batteries, etc.
operating data and statuses, but also modify controller parameters.
The controller employs a built-in over-temperature protection
mechanism. When temperature surpasses the set value, the charging
current will decline in linear proportion to the temperature so as
to curb the temperature rise of the controller, effectively keeping
the controller from being damaged by overheat.
Featuring a temperature compensation function, the controller can
automatically adjust charging and discharging parameters in order
to extend the battery's service life.
TVS lighting protection
Electronic protections:
• PV Over Current/power
• PV Short Circuit
• PV Reverse Polarity
• Night Reverse Charging
• Battery Reverse Polarity
• Battery Over Voltage
• Battery Over Discharge
• Battery Overheating
• Controller Overheating
• Lithium Battery Low Temperature
• Load Short Circuit ,
• Load Overload
• TVS High Voltage Transients
Parameter of SR-ML2440
Parameter | ML2440 |
System voltage | 12V/24V Auto |
No-load loss | 0.7 W to 1.2W |
Battery voltage | 9 to 35 |
Max. solar input voltage | 100V (25°C), 90V (-25°C) |
Max. power point voltage range | Battery voltage +2V to 75V |
Rated charging current | 20A |
Rated load current | 20A |
Max. capacitive load capacity | 10000uF |
Conversion efficiency | ≤ 98% |
MPPT tracking efficiency | > 99% |
Operating temperature | 35°C to +45℃ |
Protection degree | IP32 |
Weight | 2kg |
Communication method | RS232 |
Altitude | ≤ 3000m |
Product dimensions | 238*173*72.5mm |

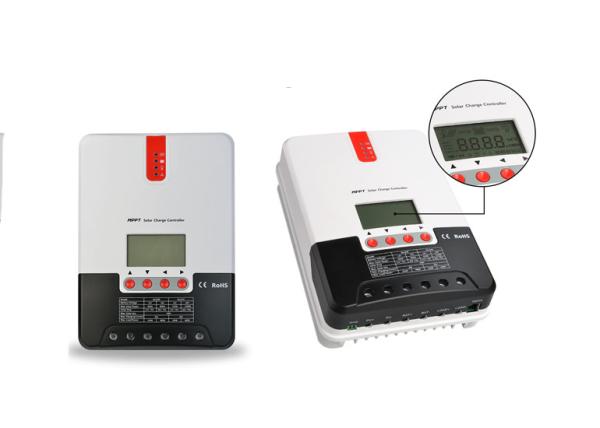

Detail of SR-ML2440
Why choose us?
SRNE, as a high-tech enterprise with the government support ,and
with own R&D team as well as factory, has become the famous
brand and the experts of PV storage management and control, we
always insist on good quality, professional service and leading
technology. Besides, customer can purchase premium products with
favorable prices from us.
Our R&D team and service: in SRNE, there' re some technicians
having more than 10 years experience in the field of solar
controller and all the products we design are the trend of market
development.
Our tenet is continuously in pursuit of warm customer service.
FAQ:
Q: what kind of certificates you have for your solar controllers ?
SRNE:Our solar controller has CE,ROHS,ISO9001 certificates
approved.
Q: Are you a manufacturer or trading company?
SRNE:We are a state-level high-tech enterprise that integrates
pluralism, R&D and manufacturing as one with PV controller,PV
inverter,PV energy storage oriented.And we have our own factory.
Q: Can I buy one sample for testing?
SRNE:Sure,we have a 8 years experience R&D team and in timely
after sale service,can help u fix any technicial problem or
confusion.
Q: How are about the delivery?
SRNE:
Sample:
1-2 working days
Order: within 7 working days depending on the order quantities
OEM Order: 4-8 working days after confirming the sample
Q: How're about your customers service?
SRNE:All solar controllers will be tested strictly one by one
before leaving factory,And the defective rate is
below 0.1%.we do try our best to provide a good customer service.
